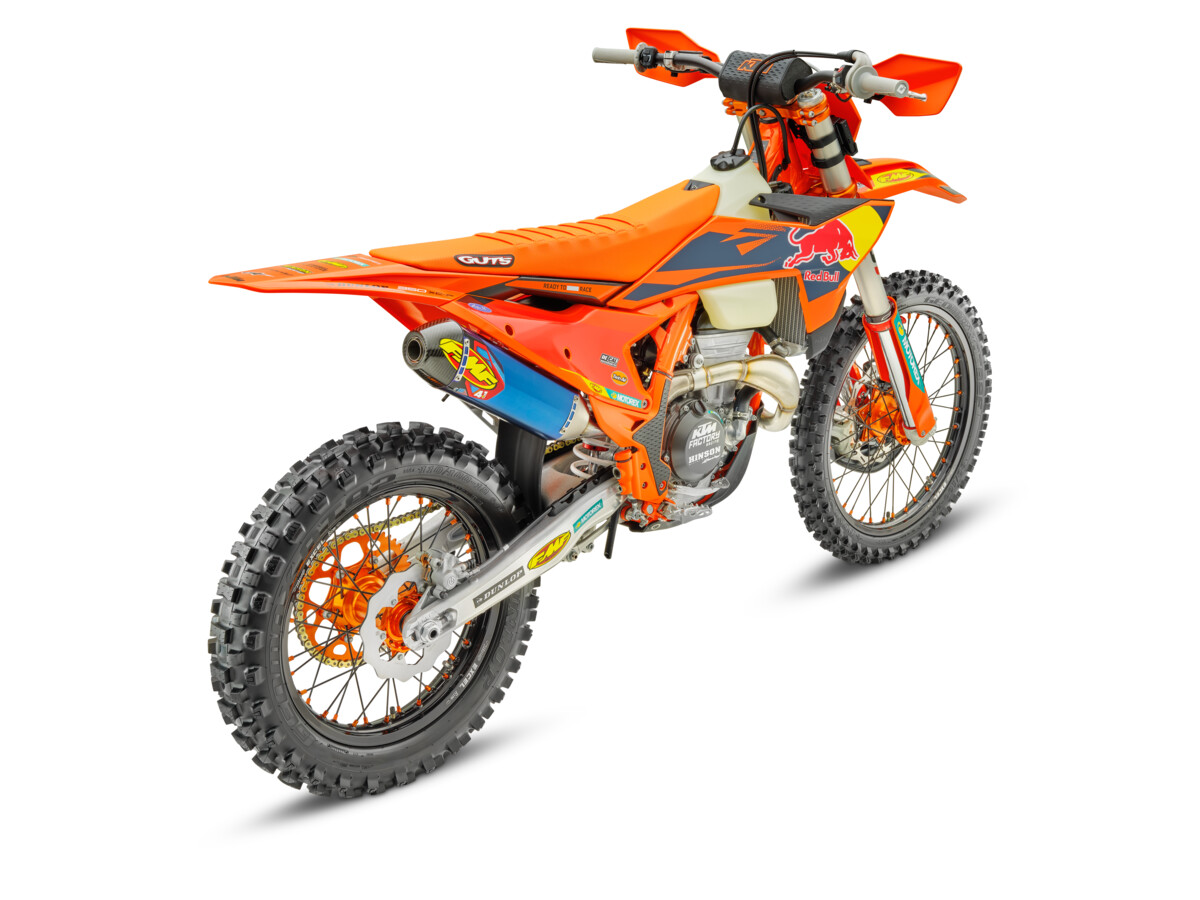

First look: 2026 KTM 350 XC-F Factory Edition GNCC replica
First look at the 2026 full-fat KTM 350 XC-F Factory Edition, the Grand National Cross Country (GNCC) winning replica off-road machine for the North American market.
With development directly from the FMF KTM Factory Racing GNCC programme, the KTM 350 XC-F Factory Edition is the latest in a line of factory replicas and special edition models.
For 2026, the KTM 350 XC-F Factory Edition primarily for the North American market features the same updates as the 2026 standard XC-F models but with a heap of meaningful extras for cross-country and off-road riders.

This factory edition carries the FMF KTM Factory Racing-inspired graphics and FMF muffler for the look and sound of the bikes Johnny Girroir and Ben Kelley put on top of the GNCC podiums.
Highlights on this 350cc, six-speed off-road model include the WP XACT Closed Cartridge spring forks and a WP XACT rear shock, KTMās Connectivity Unit Offroad (CUO) fitted as standard which lets you use the KTMconnect app for tuning and data functionality.
Adjustable triple clamps are an exclusive addition as is the integrated GPS sensor mounted on the upper right fork leg between the lower and upper triple clamp and for more advanced customisation and adjustment.
2026 KTM 350 XC-F Factory Edition Highlights
- Exclusive FMF KTM Factory Racing graphics with orange powder coated frame and Factory GUTS seat
- FMF 4.1 RCT Slip-On silencer further improves the low-end grunt while reducing weight thanks to its titanium construction
- Factory triple clamps anodised in orange deliver perfect fork clamping and adjust between 20 or 22mm offset
- KTM Factory wheels featuring EXCEL rims laced to fully CNC-machined orange anodized hubs
- WP XACT Closed Cartridge spring fork and WP XACT shock provide unmatched damping control
- Dunlop AT82 front and rear tyres.
- Factory holeshot device in the fork guards, composite skid plate, orange rear aluminium sprocket, and Hinson clutch cover provide the ultimate race-ready touches
- Map select switch changes engine character depending on course conditions and rider preference. Integrated GPS sensor mounted on the upper right fork leg
- CUO (Connectivity Unit Offroad) adjusts engine characteristics, assists suspension setup, and features optional LitPro functionality to provide key riding data.
- Quickshifter function allows clutchless upshifts from 2nd to 6th gear
- Brembo brakes are combined with a Semi-floating front and a solid rear disc, including a front brake disc guard
The 2026 KTM 350 XC-F FACTORY EDITION is due to arrive directly off the Mattighofen production line and will be available at KTM dealers from October onward.
Specifications
Engine Type: Single Cylinder, 4-Stroke
Displacement: 349.7 cc
Bore / Stroke: 88 / 57.5 mm
Compression Ratio: 14.6:1
Starter/Battery: Electric Starter / 12.8V, 2 Ah
Transmission: 6 Gears
Fuel System: Keihin EFI, 44 mm Throttle Body
Lubrication: Pressure lubrication with 2 oil pumps
Primary Ratio: 24:72
Final Drive: 14:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Sub Frame: Aluminum reinforced Polyamide
Handlebar: Neken, Aluminum Ć 28/22 mm
Front Suspension: WP XACT Closed Cartridge Fork, Ć 48 mm
Rear Suspension: WP XACT Monoshock with Linkage
Suspension Travel Front/Rear: 300 / 300 mm; 11.81 / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 220 mm
Front/Rear Rims: 1.60 x 21ā / 2.15 x 18ā EXCEL
Front/Rear Tires: 80/100-21ā / 110/100-18ā Dunlop AT82
Chain: 520, Gold
Silencer: Titanium
Steering Head Angle: 26.1Āŗ
Triple Clamp Offset: 22 mm
Wheelbase: 1,493 mm ± 10 mm / 58.7 ± 0.4 in
Ground Clearance: 343 mm / 13.5 in
Seat Height: 954 mm / 37.5 in
Tank Capacity, Approx: 8.5 L / 2.24 gal
Weight (without fuel), Approx: 104.9 kg / 231.2 lb
Ā
More information: www.KTM.com
